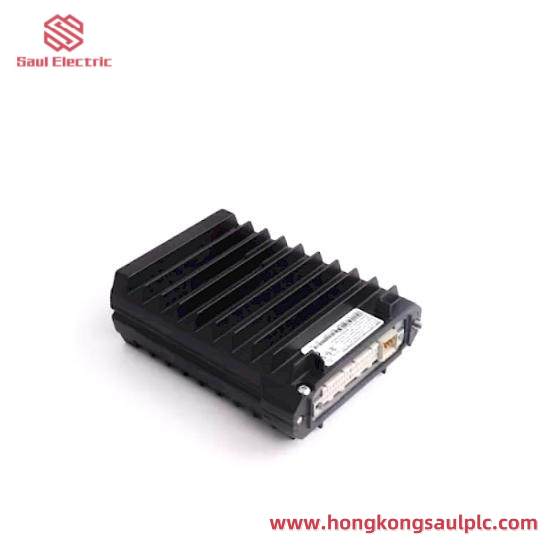

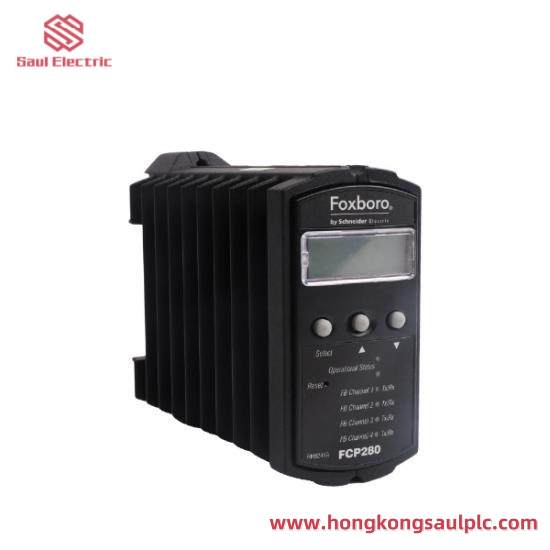

The FOXBORO FCP280 RH924YA is a high-performance industrial control module designed for advanced automation systems. It provides precise control and monitoring capabilities, making it ideal for industrial environments where reliability and accuracy are paramount.
Technical specifications :
Processor: ARM Cortex A15 (some sources refer to ARM System on Chip (SOC)).
Memory: Typically 2 GB RAM and 4 GB Flash (some sources mention 128 MB SDRAM and 128 MB Flash).
Input/Output Capacity: Supports up to 2048 I/O modules (total system capacity when used with FBM).
Communication Protocols: Ethernet, Modbus, PROFIBUS, HART, Fiber Optic (support depends on the FBM used).
Power: Typically 24 VDC (redundant).
Operating temperature range is -20 to +60°C or 0 to +60°C, depending on the source.
Dimensions: Approximately 103-116 mm (H) x 51.5-51.8 mm (W) x 147 mm (D).
Weight: approx. 0.6 – 0.8 kg (single module).
The FOXBORO FCP280 RH924YA is a Field Control Processor (FCP) module that is a key component of Schneider Electric’s Foxboro Evo process automation system (formerly I/A Series DCS).
Primary Functions:
Process Control: It performs the regulatory, logic, timing, and sequential control functions necessary for industrial automation.
Data Acquisition: Collects data from connected fieldbus modules (FBMs) and other devices.
Alarm Management: Detects process alarms and notifies operators.
Communications: Connects to the Foxboro DCS control network (The Mesh) via standard 100 Mbps Ethernet using fiber or copper cable (depending on the network adapter mounted on the chassis).
Fieldbus Interface: Supports communication with field devices via the PIO (Process Input/Output) channel of the Fieldbus Module (FBM). It can handle up to four separate HDLC fieldbuses.
Supports multiple FBMs:
Up to 128 200-series FBMs.
Up to 128 100-series and 200-series FBM combinations (up to 64 100-series FBMs).
Also connects to competitive migration modules and serial/Ethernet devices (e.g. PLCs) via a dedicated FBM (Field Device System Integrator).
Self-hosted mode: can be started with an efficient control database even without a host workstation.
The FCP280 is designed for a wide range of industrial applications including
Refining and petrochemicals
Midstream and upstream oil and gas
Chemicals and specialty chemicals
Power generation
Metals, mining and minerals
Water and Wastewater
Food & Beverage
Life Sciences and Pharmaceuticals
In summary, the FOXBORO FCP280 RH924YA is a high-performance, reliable field control processor module for the Foxboro Evo DCS that accomplishes demanding industrial automation and control tasks.
